Simpson

SKU: AFR-HUCQ225.01

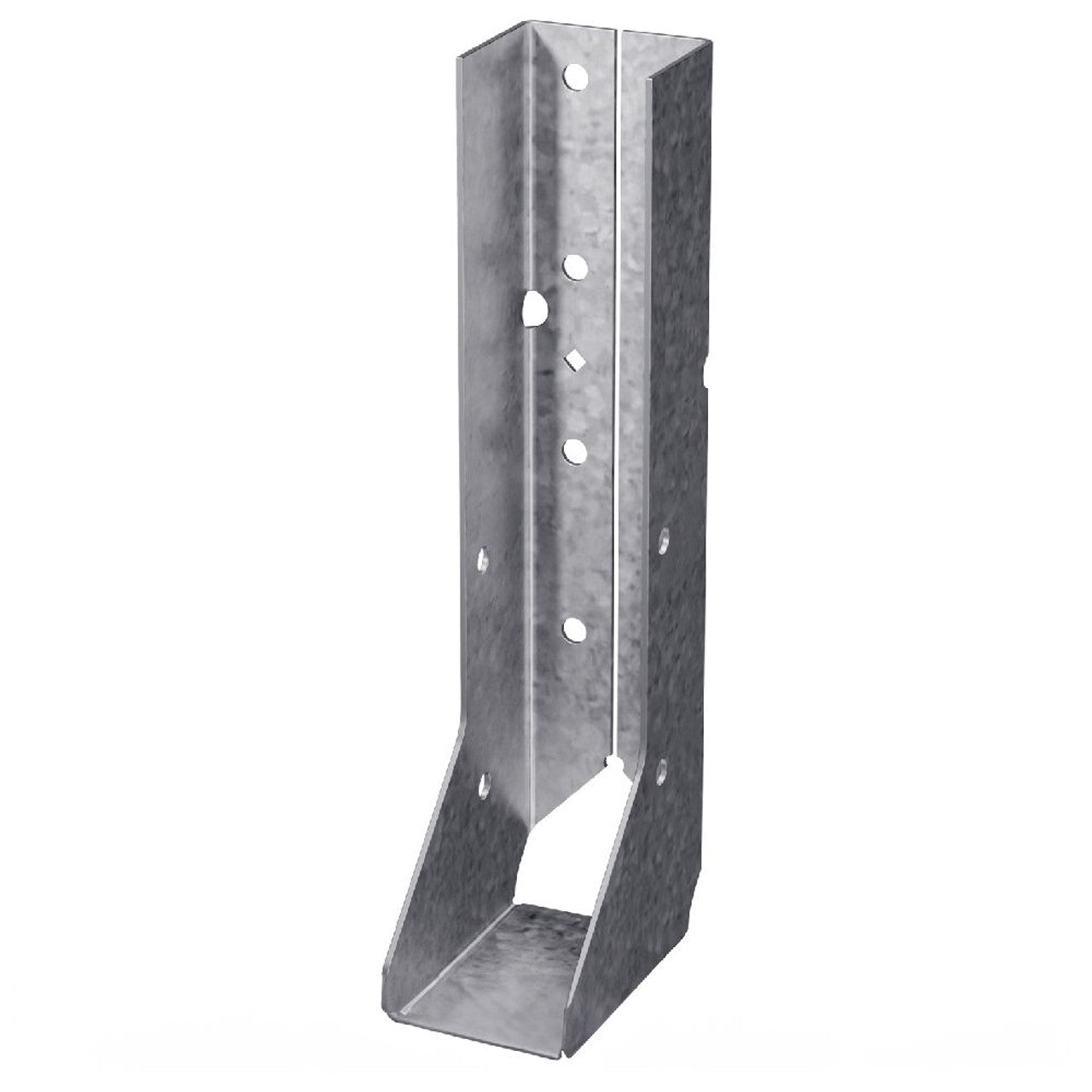

Simpson Joist Hanger 2.25

Simpson Joist Hanger 2.25

$83.97 USD
$83.97 USD
Save Liquid error (snippets/price line 86): Computation results in '-Infinity'% Call to Order: 1-877-232-3915
Shipping calculated at checkout.

Face-Mount Hangers

This product's information may differ depending on the category of use. You are currently viewing details related to Face-Mount Hangers for Solid Sawn Lumber. You can also view product information related to the category: Face-Mount Hangers for Engineered Wood

The HUCQ is designed for structures requiring additional strength and safety factors. These face-mount joist hangers have concealed header flanges and can be installed close to the end of the supporting beam. These heavy-duty hangers install with Simpson Strong-Tie® Strong-Drive® SDS Heavy-Duty Connector screws for high capacity with no predrilling for ease of installation.

Key Features

  • Concealed flanges provide cleaner lines for exposed conditions
  • HUCQ-series hangers are tested, load rated and code compliant
  • Strong-Drive SDS Heavy-Duty Connector screws are included
  • Fire-resistant F (flame) and T (temperature) rated in Intertek Design No. SST/WPCF 120-01.

Material

  • 14 gauge

Finish

  • Galvanized. Most models available in stainless steel or ZMAX® coating.

Installation

  • Use all specified fasteners; see General Notes.
  • Install 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws, which are provided, in all round holes. (Lag screws will not achieve the same load.)
  • HUCQ hangers can be welded to a steel member. Allowable loads are the lesser of the values in the hanger tables or the weld capacity. Allowable loads listed in hanger tables linked below apply when installed with minimum (6) 1" welds. Refer to technical bulletin HU/HUC Welded onto Steel Members (T-C-HUHUC-W) for weld information.

Options

  • These hangers cannot be modified

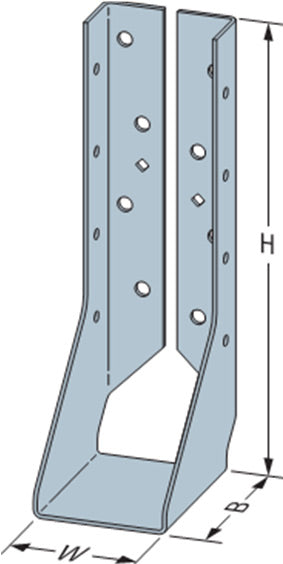

Simpson Joist Hanger Spec Sheet
