WiseRail® Cable Railing Kits

Timeless Style. American Strength. Made for Real Life.

When excellence is the only option, DeckWise® WiseCable® WiseRail® tension kits provide unmatched performance for wood-post cable railing. They expand your view to the horizon while maintaining uncompromising strength and durability.

• American‑made 316L stainless steel in-fill hardware for superior corrosion resistance

• 1/8" cable wire rolls in Silver or Black finish

• Purpose‑built for common-dimension 4x4 or 6x6 wood posts (3‑1/2" actual min.)

---

Choose Your Collection

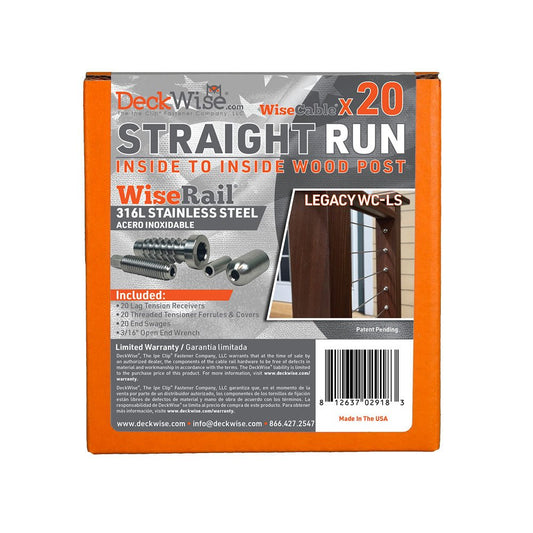

Legacy — Inside‑to‑Inside Mounting

Ideal for: clean, minimalist terminations that mount within the post faces.

How it works

• Inside‑to‑inside fittings mount on the interior faces of the terminal posts.

• Slim hardware footprint keeps the profile sleek and modern.

Best for

• Straight level runs. Use in combination with Estate Series for stairs and angles.

• Decks and interiors where a flush, low‑profile look is preferred

Highlights

• Factory‑precision machined tensioners for consistent cable alignment

• Designed for fast, no‑nonsense installs into wood posts

Typical use: WiseCable® Legacy (WR‑LS) straight runs

Patent Pending.

---

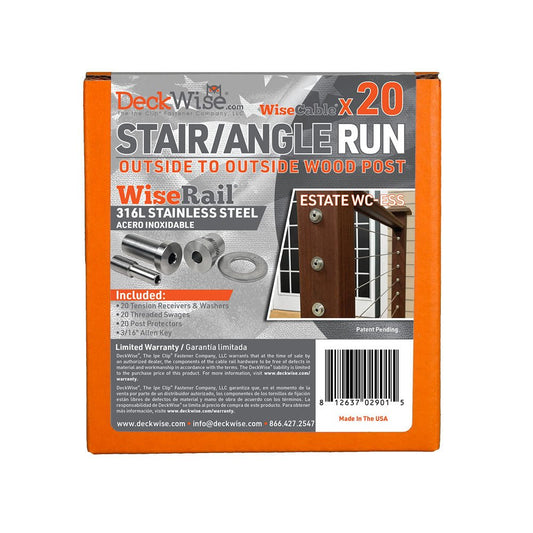

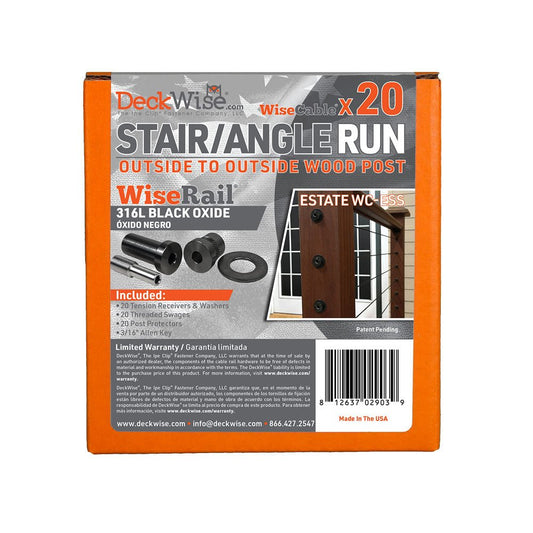

Estate — Outside‑to‑Outside Mounting

Ideal for: robust terminations where hardware seats on the exterior post faces.

How it works

• Outside‑to‑outside fittings mount to the outer faces of terminal posts.

• Excellent for stair and angle runs where access to the hardware is helpful.

Best for

• Stairs and angle runs. Use in combination with Legacy Series for straight runs.

• Projects favoring a bold, architectural accent at the posts

Highlights

• Precision tension receivers and swaged ends lock cables in place

• Streamlined installation with straightforward drilling and tightening

Typical use: WiseCable® Estate (WR‑ESS) level and stair/angle runs

Patent Pending.

---

WiseRail® Kit Options

Kit Series	Model #	Straight Run	Stairs
WiseCable® Legacy	WR‑LS	✓
WiseCable® Estate	WR‑ESS	✓	✓

Note: These two cable rail systems are not compatible with any DeckWise® CableRail® components or fittings manufactured prior to August 2025. All kits are sold for wood posts as straight runs or for stairs. Patent Pending.

---

What’s Included (per tension kit)

• 316L stainless steel tension hardware (finish‑matched)

• 1/8" stainless steel cable (lengths per kit selection)

• All required washers and fasteners

Kits are engineered for both interior and exterior environments, including coastal applications.

---

Plan Your Infill Packs

WiseRail® CableRail® hardware packs are configured for 1/8" cable. Choose the number of infill packs based on your desired rail height:

• 36" railing height: 10 infill packs

• 39" railing height: 11 infill packs

• 42" railing height: 12 infill packs

---

Post, Layout & Spacing Essentials

• Posts: Minimum 4x4 (3‑1/2" actual) wood posts for terminals; ensure all terminating posts are securely mounted to the structure.

• Top rail: Required; consider vertical reinforcement beneath the top rail for added rigidity.

• Hole layout: Mark the first hole 3‑1/8" down from the bottom of the top rail, then continue every 3‑1/8" on center.

• Centerline: On 3‑1/2" posts, center holes at 1‑3/4".

• Cable spacing: Drill at 3‑1/8" on center to maintain ≤ 3" clear between cables (accounts for 1/8" cable diameter).

• Support spacing: Add intermediate supports (posts or cable braces) so lateral support spacing is ≤ 48".

Code reminder: Most jurisdictions require the 4" sphere rule—no opening (between cables, top rail to top cable, or bottom cable to deck) may allow a 4" sphere to pass.

---

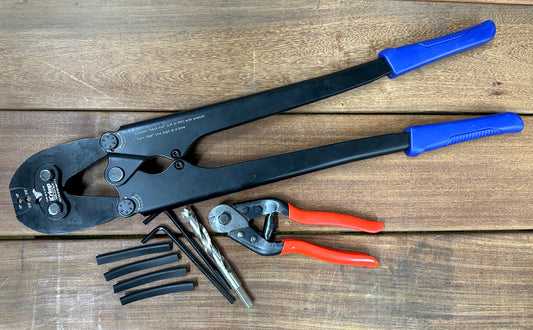

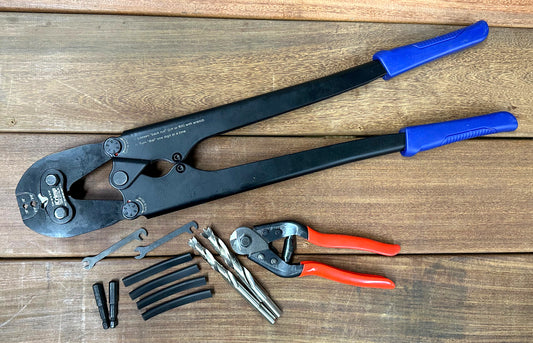

Recommended Accessories (sold separately)

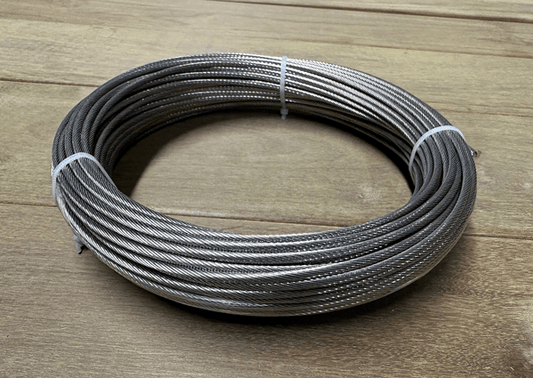

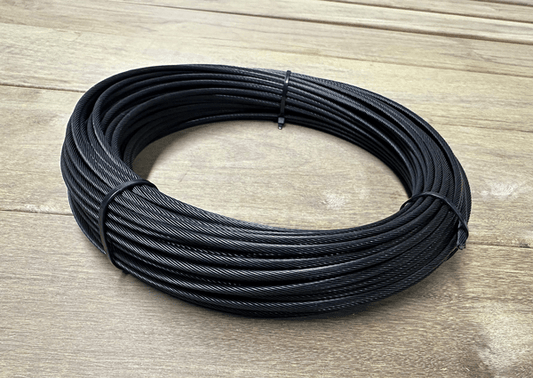

• Stainless Steel Cable Wire Spools (Silver or Black): 100 ft., 250 ft., 500 ft.

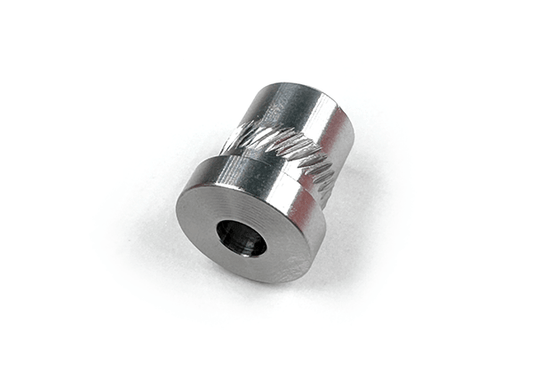

• Post Protector Sleeves (Silver or Black)

• Adhesive Washers (Silver or Black)

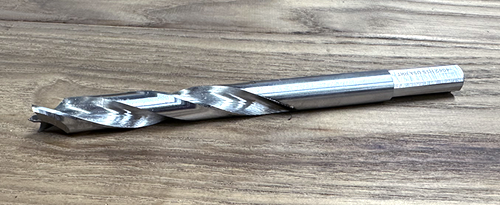

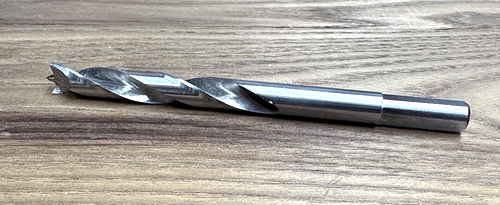

• Brad‑Point Drill Bits; Power Drill

• Anti‑Seize Lubricant

• Cable Cutter & Cable Crimper

• Cable Pliers / Vise Grips / Standard Pliers

• Wood Block (for seating sleeves without marring finish)

• Level, Tape Measure, Pencil, Painter’s Tape

---

Installation Tips

• Treat cable railing as a two‑person project for accuracy and safety.

• Use painter’s tape down the post centerline to reduce blowout and improve marking visibility.

• Pre‑fit tensioners and verify hole‑to‑hole alignment before final tightening.

---

Why DeckWise®

At DeckWise®, every piece of WiseCable® infill hardware is designed and manufactured in the United States. From initial engineering through final production, we manage the entire process to ensure reliable quality while supporting American jobs. These systems are made to endure and proudly built right here at home.

---

Need Help Estimating?

Have a sketch with post centers and rail heights? Share it and we’ll help estimate kits, infill pack counts, cable lengths, and accessory quantities for your layout.

---

Get More Information

Explore the complete installation guides and full product details here: WiseCable® WiseRail® Cable Railing Kits.
