DrySpace™ Drainage Kit

TimberTech® DrySpace™ Drainage Kit

Transform Your Under-Deck Area into a Dry, Usable Space

The TimberTech® DrySpace™ Drainage Kit is an under-deck water management system designed to collect and redirect rainwater, protecting your deck's substructure and creating a dry, functional space below. Ideal for both new and existing decks, this system is easy to install and enhances the usability of the area beneath your deck.

Available Configurations:

• 12" On-Center (OC) Joist Spacing:

  • 12' Length Kit:

    • 6 x 12" OC V-Panels

    • 7 x 12' Combo Brackets

    • 1 x 12' Ledger F-Bracket

• 16" On-Center (OC) Joist Spacing:

  • 12' Length Kit:

    • 6 x 16" OC V-Panels

    • 7 x 12' Combo Brackets

    • 1 x 12' Ledger F-Bracket

  • 16' Length Kit:

    • 6 x 16" OC V-Panels

    • 7 x 16' Combo Brackets

    • 1 x 12' Ledger F-Bracket

Note: Each kit is designed to cover 6 joist bays.

Product Features:

• Material: Solid extruded vinyl for maximum strength, durability, and weather resistance.

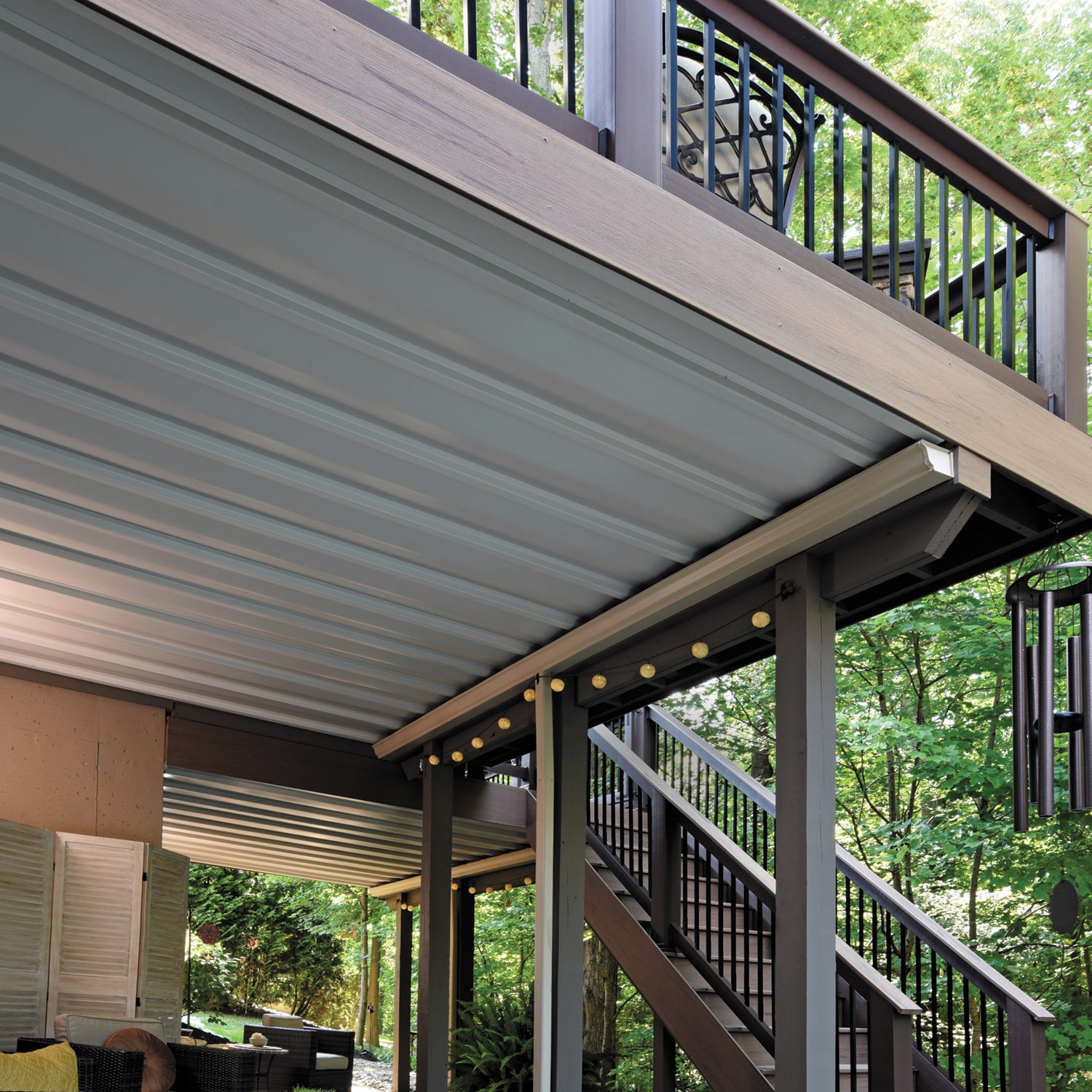

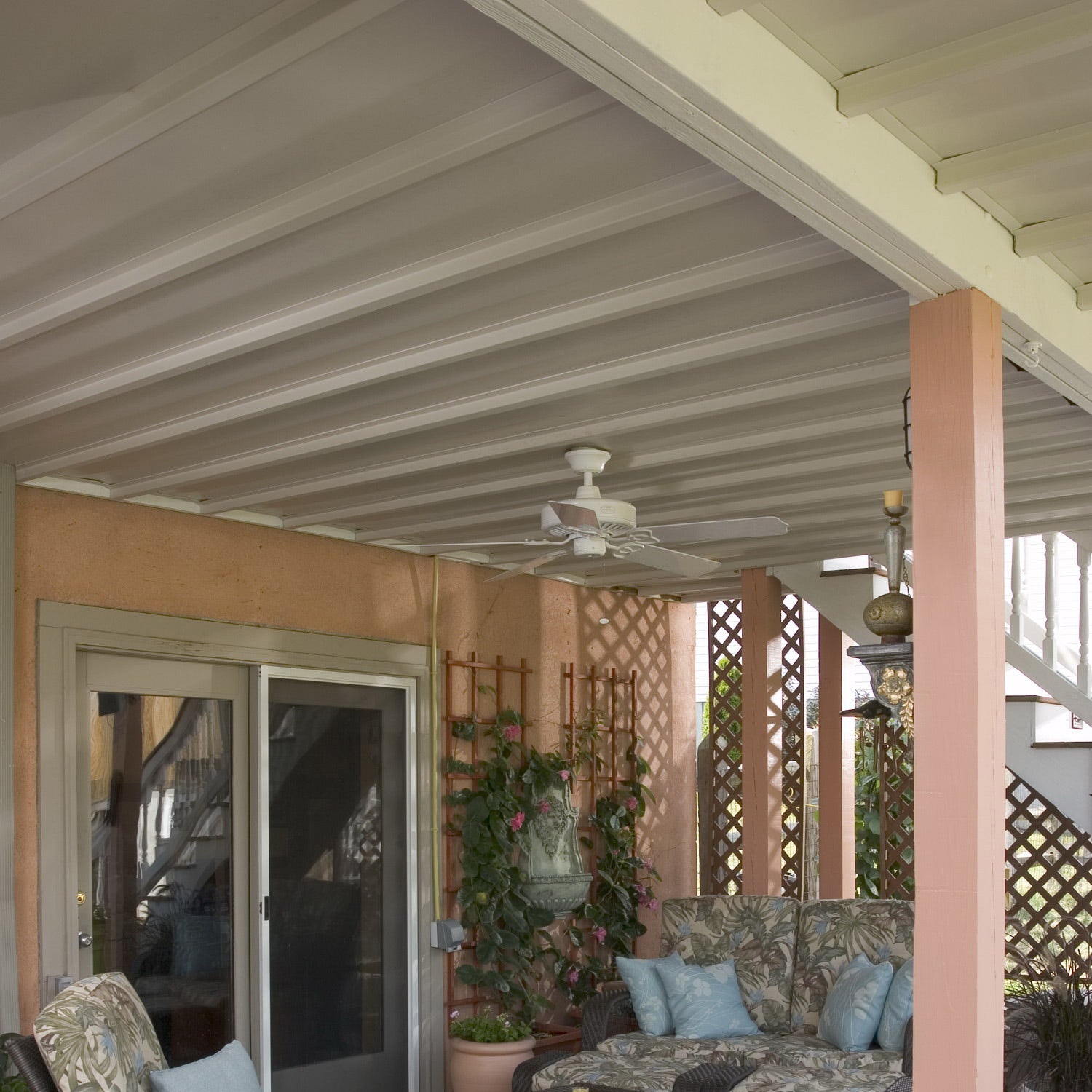

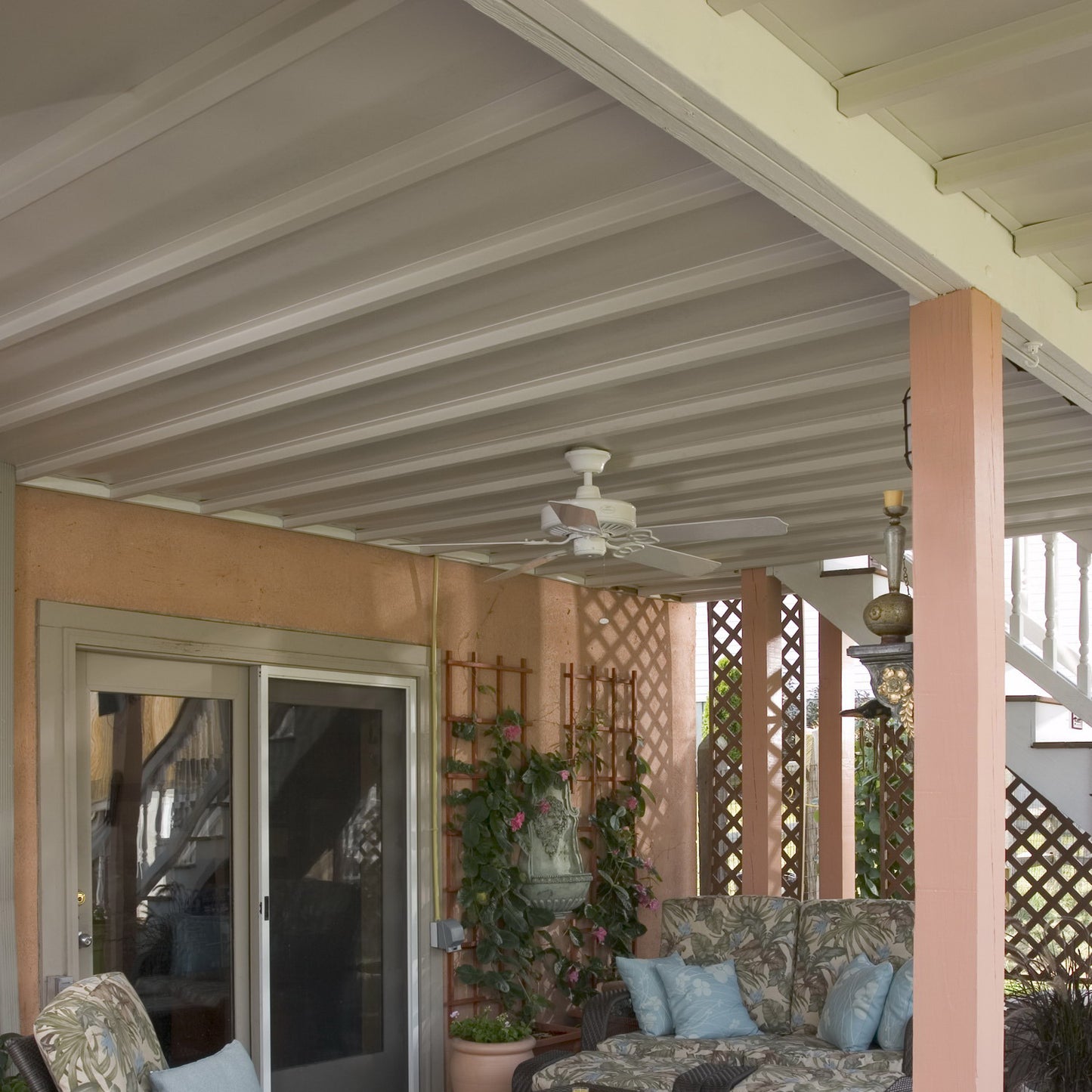

• Colors Available: Bone and White.

• Compatibility: Suitable for decks with 12" or 16" on-center joist spacing.

• Installation: Attaches directly to deck joists; suitable for both new and existing decks.

• Functionality: Channels moisture away from the deck, protecting the area below from potential damage caused by moisture, mold, and mildew.

Installation Tips:

• Preparation: Ensure joist spacing matches the kit configuration (12" or 16" OC).

• Installation Sequence: Start by attaching the Ledger F-Bracket to the ledger board, followed by installing the Combo Brackets to the joists, and finally inserting the V-Panels.

• Slope: Maintain a slight slope (approximately 1/8" per foot) away from the house to facilitate proper drainage.

• Fasteners: Use corrosion-resistant screws (not included) for securing brackets.

For a comprehensive installation guide, refer to the official TimberTech DrySpace Installation Guide (PDF).
